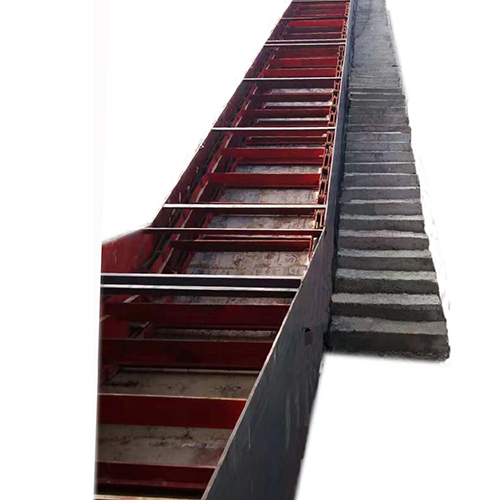

ZBC heavy duty chain slag remover

  • Taxonomy:ZBC heavy duty chain slag remover

  • Click times:
  • Date of release:2019/11/19
  • inquiry
DETAILED

First, use:


This equipment is used for production, steam, hot water and other types of boilers to remove slag, for 10 tons - 100 tons, horizontal boilers, quick-load boilers, single or multiple units. The cinder is pulled out of the iron trough to the outside through the cyclic rotation of the chain. The equipment can reduce the labor intensity of slag removal, improve the environmental sanitation working conditions of the boiler room, make the boiler run normally, and ensure the production, domestic use of gas and hot water. This product is open type, different other type of slag removal machine, the size slag can be directly discharged outside. The equipment type is widely used, durable, wear-resistant and has the best slag removal effect.


Second, the structure and principle:


(1) Structure: It consists of a drive sprocket, a driven sprocket, a chain, a reducer, an electric motor, a steel plate groove, a bracket, and the like. The bottom of the steel trough is paved with wear-resistant material cast slabs, and the tank is sealed with water. The ash hopper mouth must be inserted below the water surface in the tank to achieve water sealing.


(2) Principle: The motor passes through the reducer, and then the drive sprocket or the chain is driven by the reducer to drag the ash cooled by the water in the tank to the outside of the tank or to the outside.

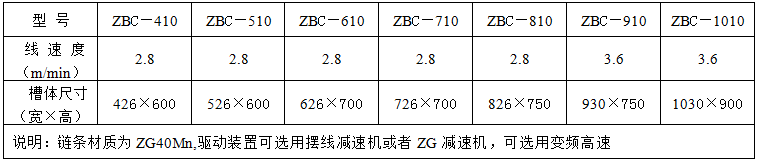

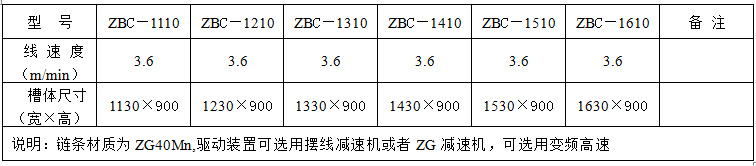

Third, technical parameters
