Martin slag remover

  • Taxonomy:Martin slag remover

  • Click times:
  • Date of release:2019/11/19
  • inquiry
DETAILED

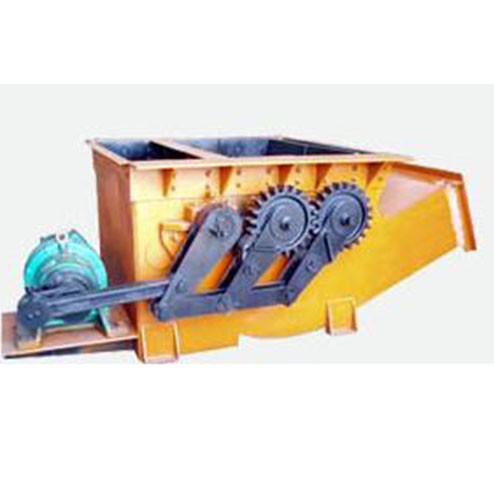

Martin slag remover

The Martin slag remover is suitable for slag removal in 6-40t/h boilers. The slag has strong performance and is an ideal slag removal device for coking coal.


The main components of the machine are composed of organic shell, slag crushing mechanism, slag pushing mechanism and driving mechanism. The ash entering from the slag slag is crushed by the slag crusher and falls to the water seal of the body. The bottom water immersed and then continuously reciprocated by the slag pushing mechanism to push the boiler ash out of the body.


The main technical parameters:


1, with boiler 6-40t / h


2, continuous slag check 2t / h


3, the number of slag breaking mechanism: 4 rev / min


4, push slag mechanism stroke length 312mm


5, the maximum size of ash is 120mm


6, the gray port size: 600 × 1000


7, with the motor: 112-685-2.2KW


8, the output shaft runs clockwise
