Sodium ion water treatment

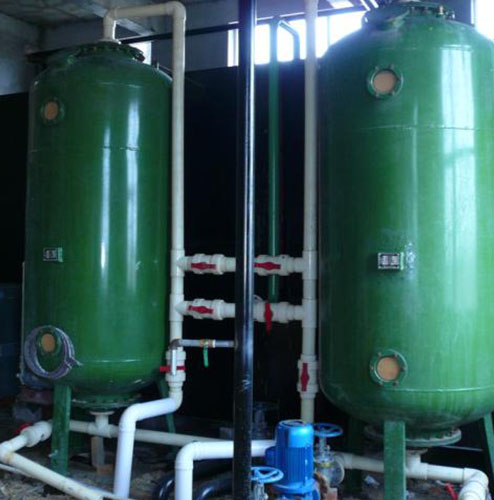

The FR type floating bed soft sodium ion exchange water softener is one of the main equipments for boiler water treatment. This product combines the advantages of similar products at home and abroad and re-optimizes the design. The material is made of high-quality steel, and the internal and external high-temperature burning work enamel (or lined with rubber sheet). The structure is novel and the anti-corrosion performance is good. The exchange agent uses strong acid sodium ion exchange resin, and the exchange capacity is large. During operation, the resin is suspended in the tank, fully contacted with water, the exchange effect is good, the soft water quality is high, the regeneration salt consumption is low, and the land is occupied. The utility model has the advantages of small area, few pipeline gates, easy installation, convenient operation and economical safety, and is an ideal equipment for various boiler water treatments.

      First, the working principle

      The work of the ion exchange water softener is done by two processes of exchange and regeneration.

      Exchange: The raw water enters the exchanger tank from the lower part, and rises evenly through the water dividing device to hold the resin in a suspended state. The raw water is subjected to an ion exchange reaction through the resin layer to eliminate calcium and magnesium ions in the raw water, thereby achieving the purpose of softening the water.

      Regeneration: When there is a certain amount of calcium and magnesium ions in the exchanger, the exchange layer is nearly ineffective and the quality of the soft water is rapidly deteriorated. Therefore, at a certain time, it is necessary to regenerate the resin with a salt liquid to restore the exchange capacity.

     Second, product features:

      The floating bed ion exchange water softener is a type of advanced convection regeneration process with the following characteristics:

     1. High effluent quality: At rated effluent, the residual hardness of the outlet is close to zero, which is much smaller than the standard specified 0.03 meq/L.

     2, the work exchange capacity is large: the work exchange capacity can reach 1000-1200 grams equivalent / cubic meter of resin.

     3. Low self-consumption water consumption: self-consumption water is below 5%.

     4, the regeneration time is short: 50-60 minutes to complete the entire process of regeneration.

     5, low regeneration salt consumption: the general salt consumption is 70-80 g / gram equivalent hardness.

     6, the operation is simple, the operation is safe and reliable.
