First, use
This machine is suitable for mines and coal preparation plants, and the coal is evenly loaded into the transporter or other screening equipment storage device through the coal bunker.
Second, the structure description and working principle

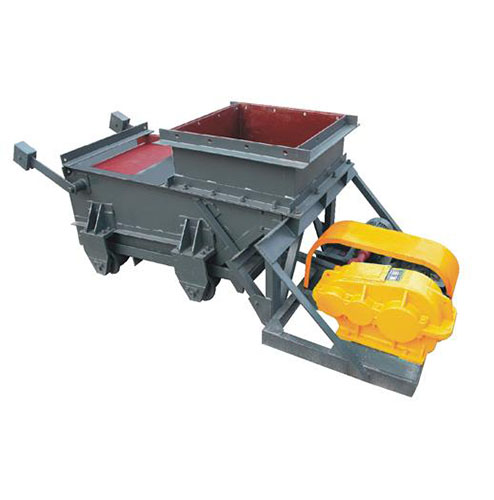

The coal feeder is composed of a motor, a reducer, a transmission frame, a crank connecting rod device, a bottom frame, a bottom plate (a coal feeding groove), a gate, a roller and the like.
When the motor is started, the bottom plate of the inclined angle of 5° is dragged by the elastic coupling, the reducer and the crank linkage mechanism to reciprocate linearly on the roller, and the coal is evenly discharged to the transport machine or other screening equipment. There are two types of funnels or no funnels as needed. According to the order.
The coal feeder is provided with two structural forms:
1, with adjustment gate 2, without adjustment gate
Its feeding capacity is achieved by the floor stroke.
Third, the main features
1. Reliable work and long life.
2. Light weight, small size and convenient maintenance.
3. Simple structure, reliable operation, convenient adjustment and installation.

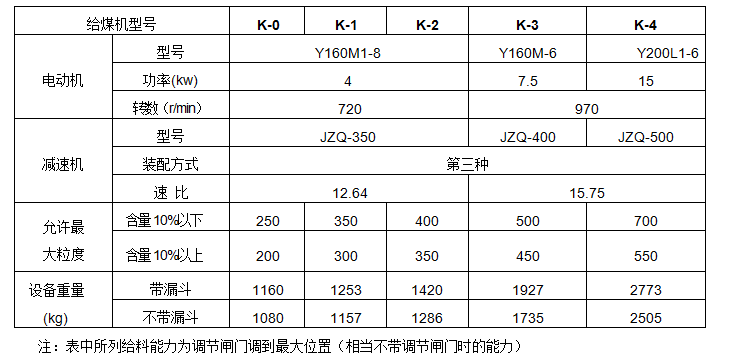

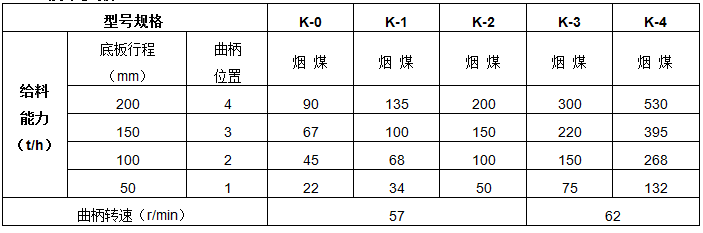

Fourth, technical parameters:
