I. Overview

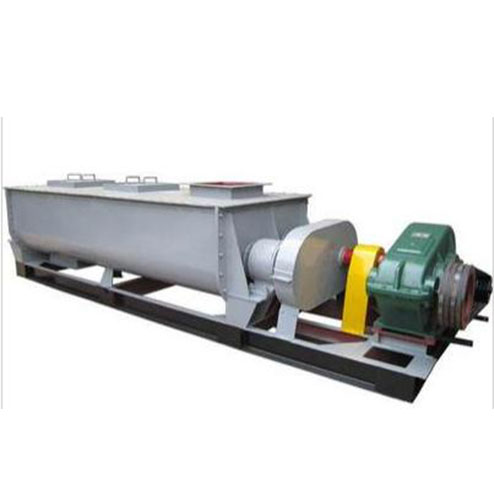

The two-axis humidifying mixer is suitable for the humidification and agitation of boiler coal ash. The coal ash after mixing has no dust flying during transportation and loading, avoiding environmental pollution, and is an essential equipment for environmental protection.
Second, structure and characteristics
1. Structure: It is mainly composed of casing, screw shaft assembly, drive unit, piping, cover plate and chain cover.
2. Features:
(1), JZQ reducer has a large torque transmission distance, which makes the equipment operation safe.
(2) A reasonable spray device to achieve the best results by mixing grey water.
(3) The mixer blades made of high wear-resistant materials have long service life and reliable operation.
(4) The well-designed shaft seat and sealing device structure not only facilitates inspection, but also completely eliminates water leakage and leakage.
(5) Flexible and reliable electrical control system makes the operation safe and simple.

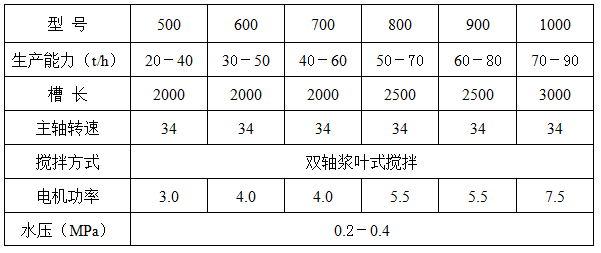

Third, the main technical parameters:
